Solderless Patch Cable Kit (POK-02)
Couldn't load pickup availability

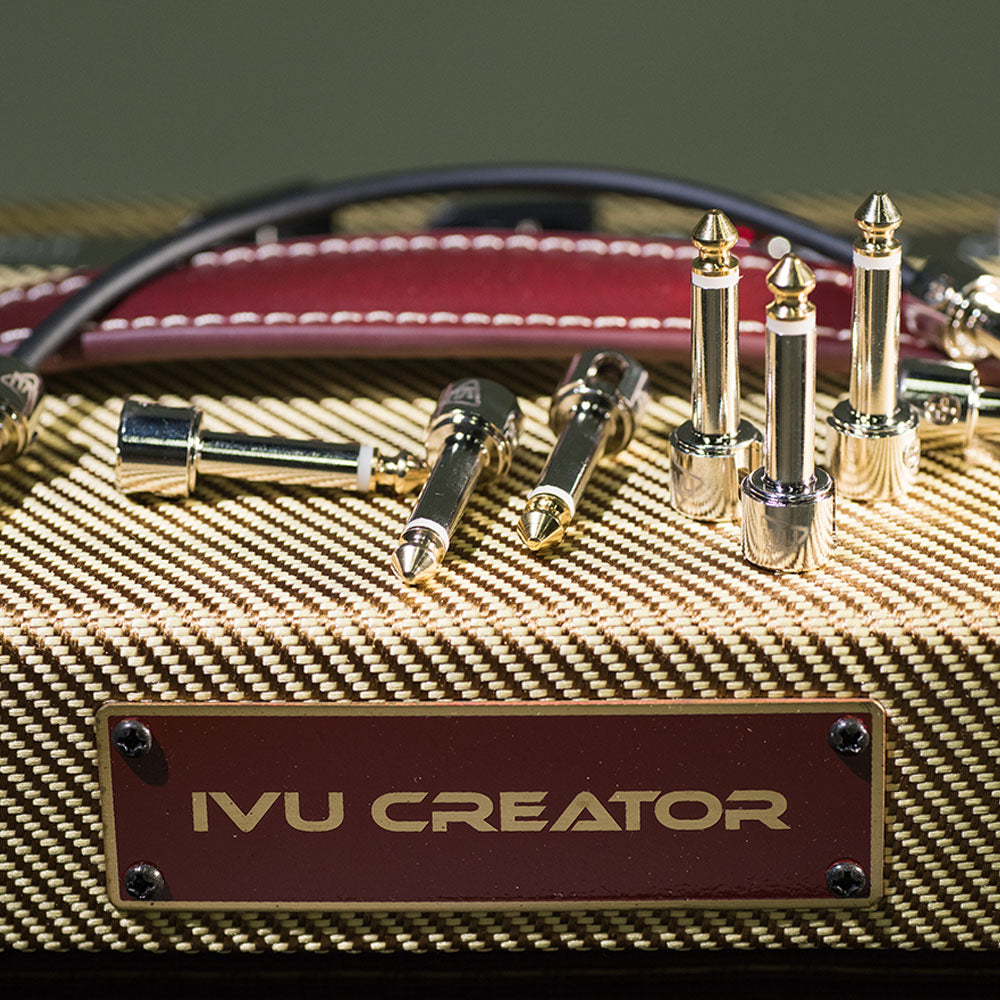

The IVU Creator POK-02 is a solderless 6.35 mm / 1/4-inch mono patch-cable system for building custom-length audio connections between guitar pedals. Its dual-hole plugs can be configured as straight or right-angle connectors, helping route pedalboard cables where space is limited.
What is the POK-02 solderless patch cable kit?

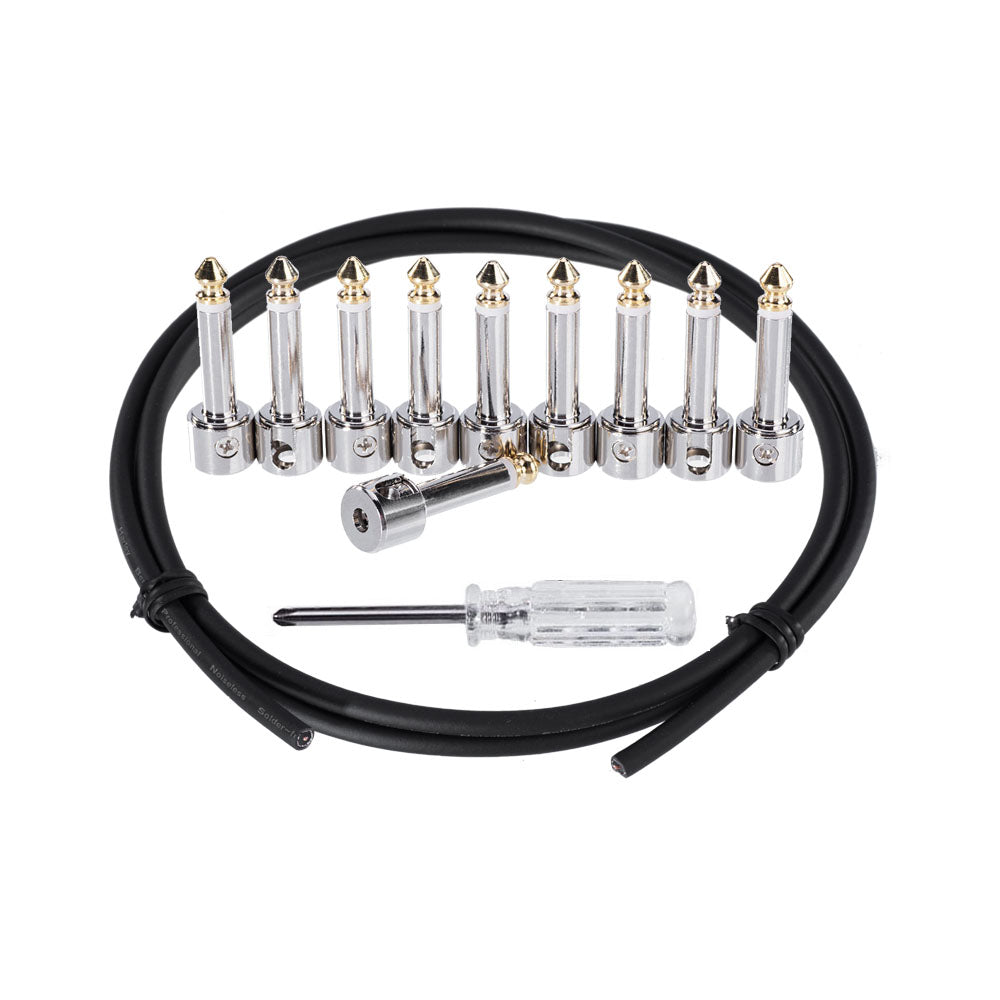

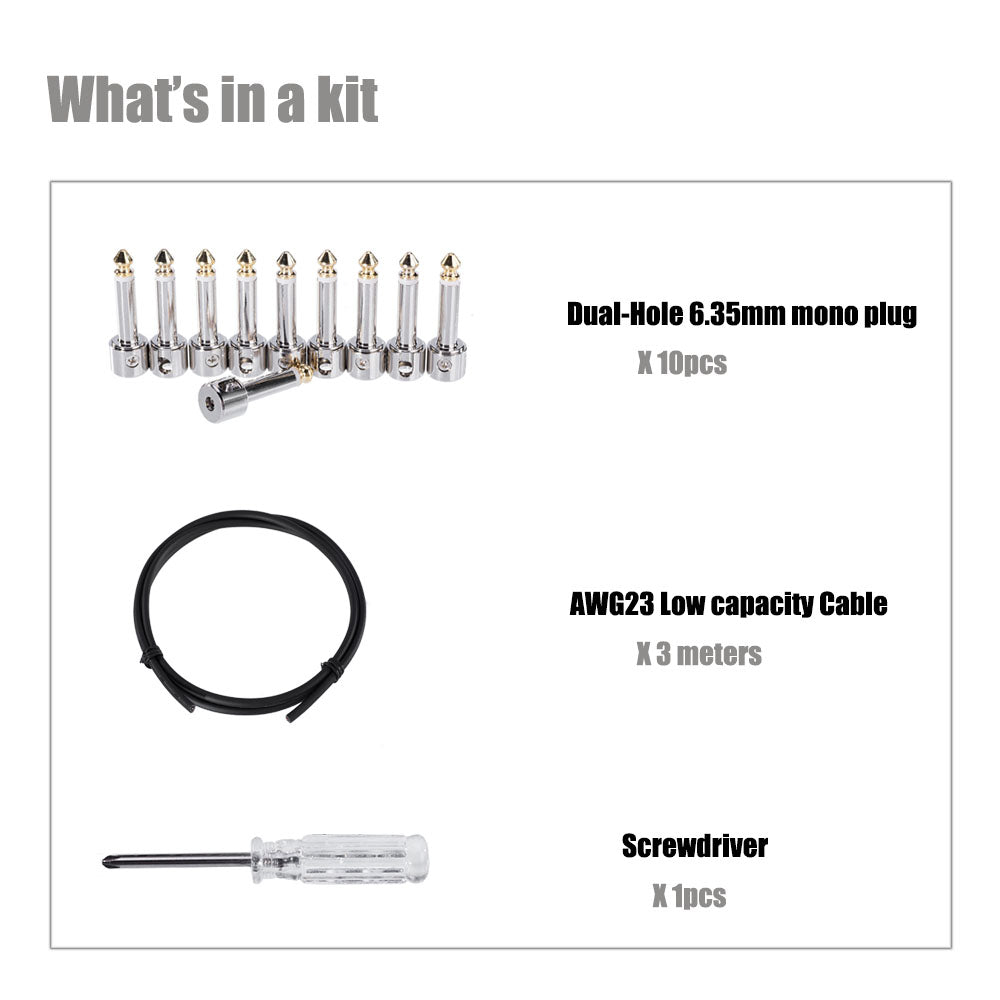

POK-02 lets you cut pedalboard patch cable to the required length and secure each plug with a set screw—no soldering iron is required. IVU's product materials identify 10 dual-hole 6.35 mm mono plugs, 3 m of AWG23 low-capacitance cable and one screwdriver.
- Application: custom audio patch cables for compatible guitar pedals and pedalboards
- Plug type: dual-hole 6.35 mm / 1/4-inch mono plugs
- Plug quantity shown: 10 pieces
- Cable: AWG23 low-capacitance cable, 3 m
- Plug layouts: straight or right-angle
- Assembly tool shown: screwdriver, 1 piece
What are the verified POK-02 specifications?
The POK-02 product materials specify 10 dual-hole mono plugs and 3 m of AWG23 low-capacitance cable. The system is intended for pedalboard audio signal connections, not DC pedal-power wiring.
| Item | Verified detail |
|---|---|
| Model | POK-02 |
| Connector format | 6.35 mm / 1/4-inch mono plug |
| Plug design | Dual-hole; configurable as straight or right-angle |
| Plug quantity shown | 10 pieces |
| Cable | AWG23 low-capacitance cable |
| Cable length shown | 3 m / about 9.8 ft |
| Assembly | Cut cable, insert it into the plug and secure the set screw |
| Tool shown | 1 screwdriver |

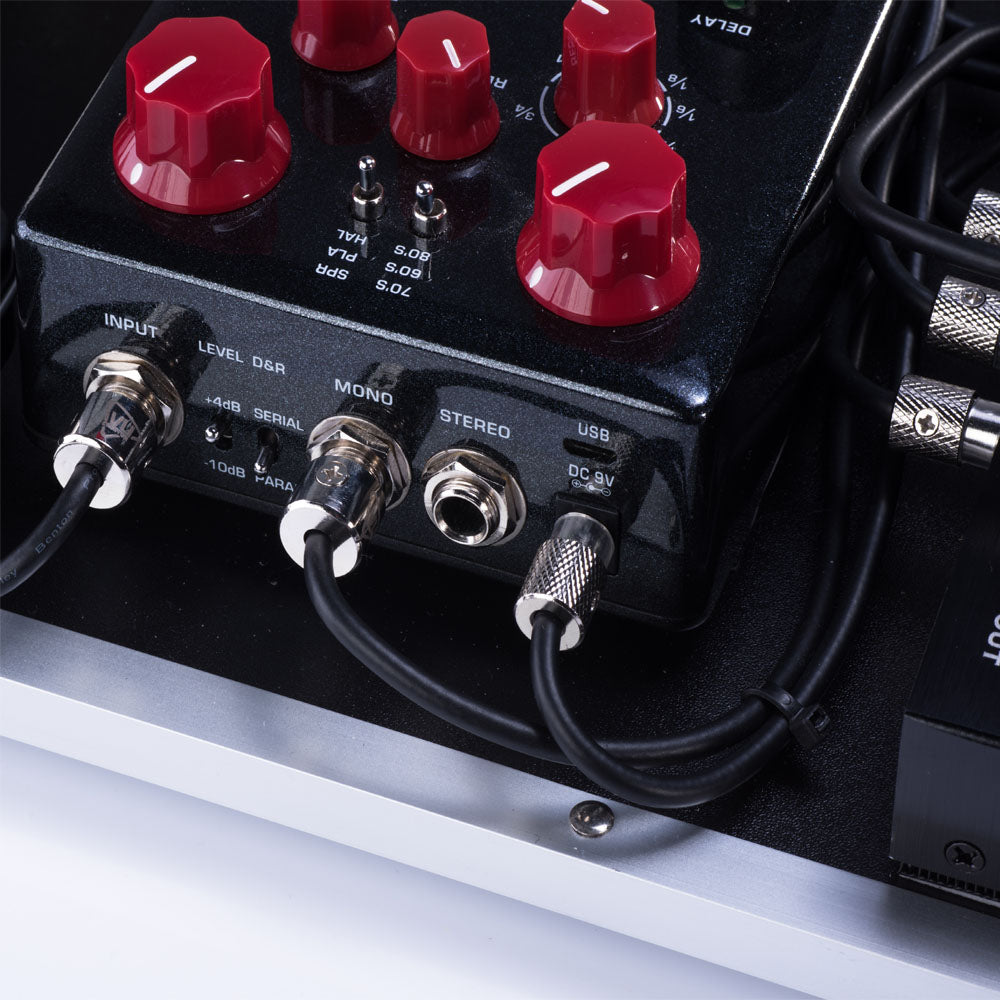

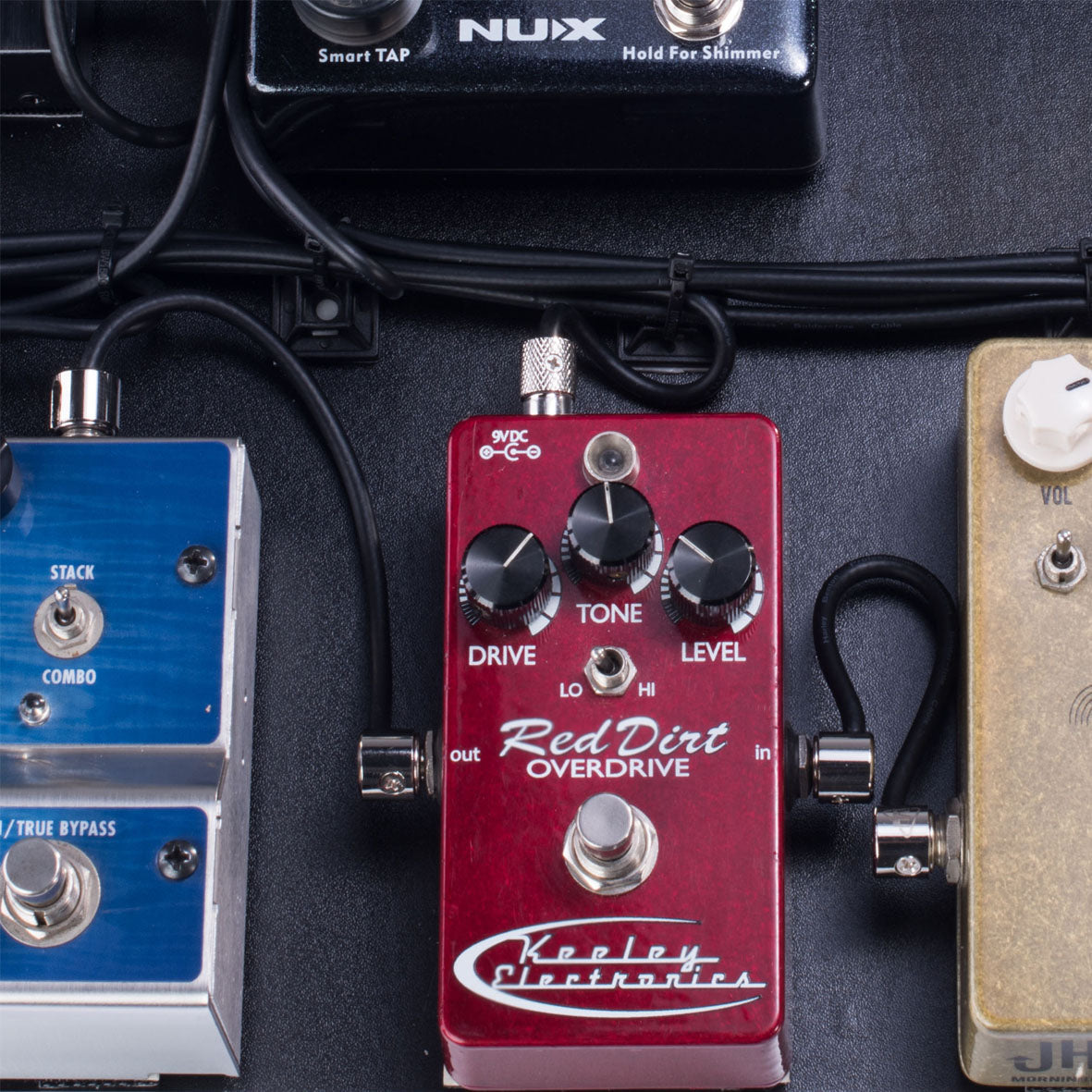

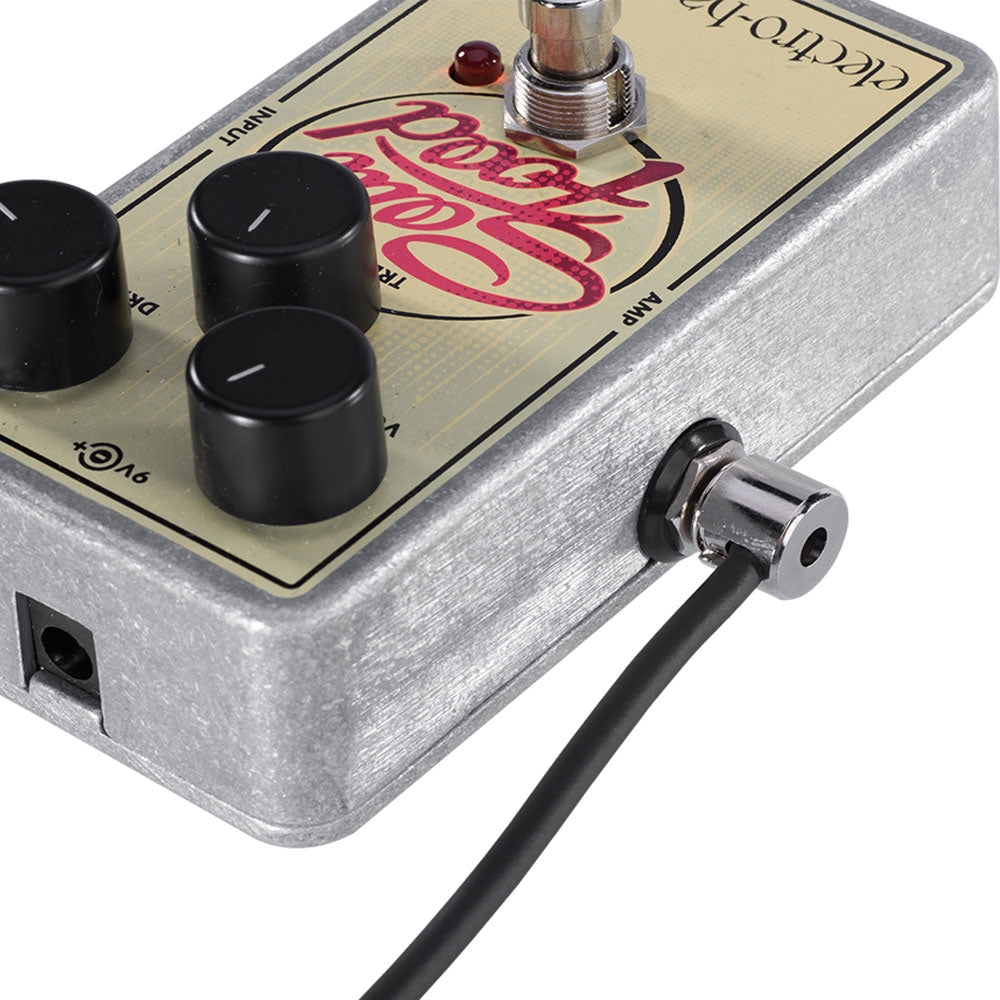

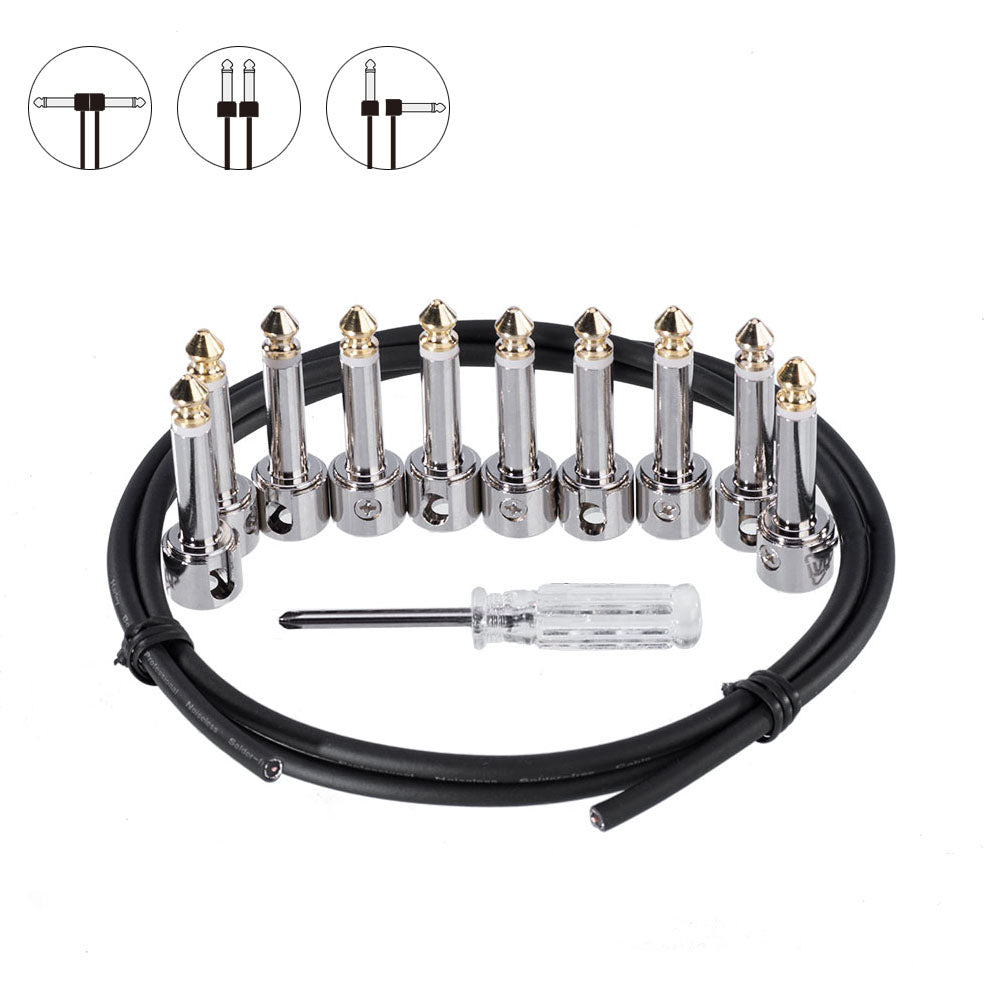

How do straight and right-angle plugs help a pedalboard?
The dual-hole plug body lets the cable exit straight or at a right angle, so one plug design can adapt to different pedal-jack positions. IVU states that the mini plug design uses less space than standard audio plugs; actual clearance depends on the pedal enclosure and spacing.
| Configuration | When it may fit best | What to check |
|---|---|---|
| Straight | Open layouts with room behind or beside the jack | Cable path does not press against another pedal or enclosure |
| Right-angle | Tighter side-by-side layouts or side-mounted jacks | Plug body and cable bend clear adjacent controls and power plugs |
How do I build a solderless pedalboard patch cable?
- Arrange the pedals and measure the real cable path, leaving enough slack to avoid pulling on either jack.
- Cut the cable cleanly to the required length.
- Choose a straight or right-angle cable exit for each dual-hole plug.
- Insert the cable end fully into the plug and secure the set screw with the screwdriver.
- Check continuity or test the finished cable at low volume before completing the pedalboard wiring.
What should I check before ordering POK-02?
Confirm that the pedals use compatible 6.35 mm / 1/4-inch mono audio jacks and review the selected store option before checkout. The current Shopify export lists Plug X 10pcs and Cable X 3m as separate options, so verify that the selected option matches the components you need.
Frequently asked questions
Does POK-02 require soldering?
No. The cable is cut to length, inserted into the plug and secured with a set screw.
Can each plug be straight or right-angle?
Yes. The dual-hole design allows straight or right-angle cable routing from the same plug body.
How many two-ended patch cables can 10 plugs make?
Ten plugs can make up to five two-ended patch cables when all plugs are used in pairs. The final number and length depend on how the 3 m cable is cut.
Is POK-02 a DC pedal-power cable kit?
No. POK-02 is listed for 6.35 mm mono pedalboard audio patch cables. IVU identifies POK-03 as the separate solderless DC cable kit.
Does every current option include both plugs and cable?
The supplied Shopify export lists the 10-plug set and 3 m cable as separate options. Check the selected option and current package contents before ordering.
